ayeT-Studios Publisher Android SDK Integration Guide (v3.6)

Before integrating the SDK in your app, you should sign up for a publisher account. Afterwards login as publisher and create a new Android App Placement using the correct package name you intend to use for your final app.
This is important since we'll generate an APP_KEY / Identifier for you which has to be added to your AndroidManifest (see step 3).

You can download the lastest version of our publisher library here:
ayetpublisher3.6.jar

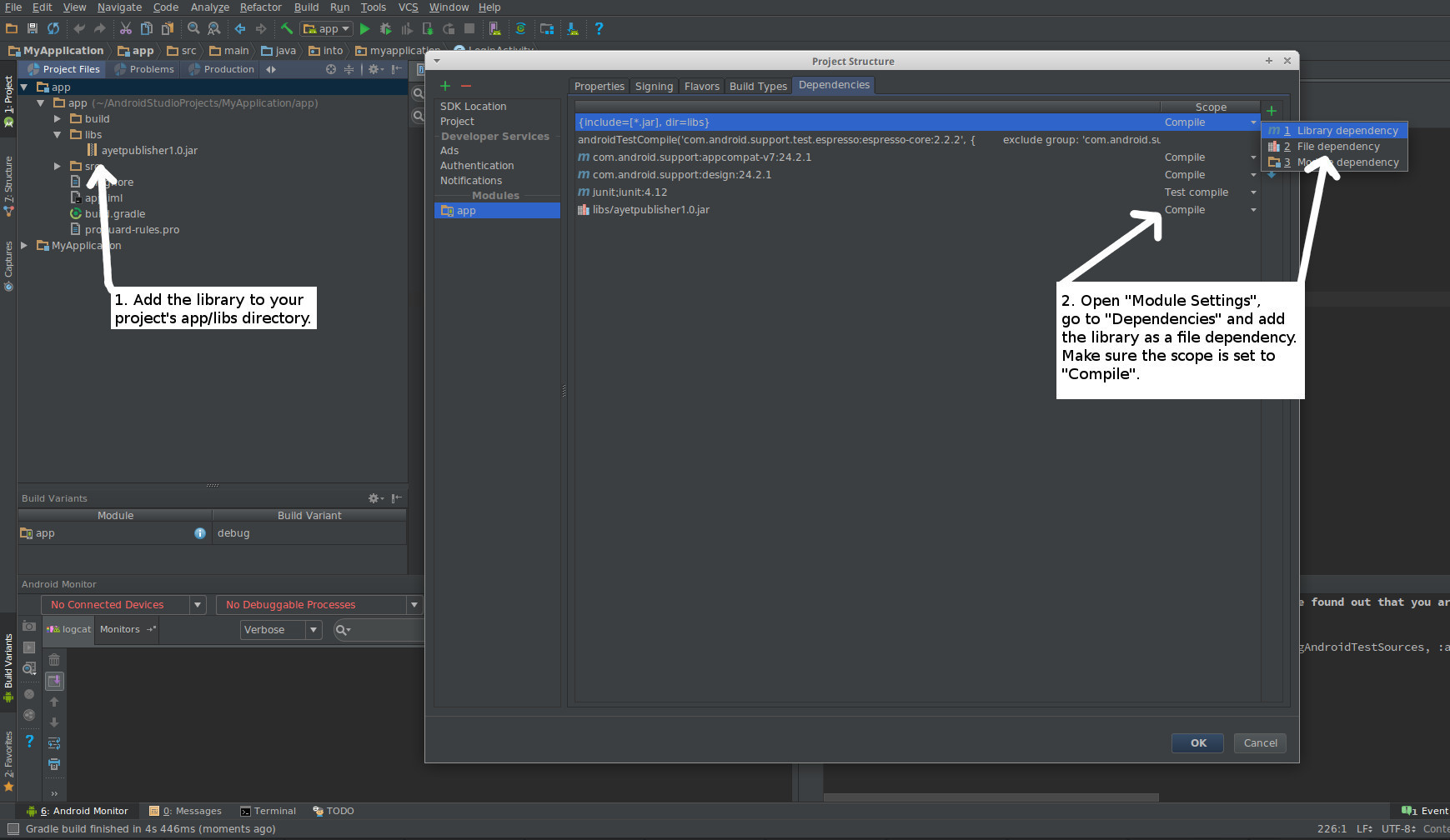

Copy the downloaded jar library to your Android Studio project (in the app/libs/ folder).
Go to "Module Settings" (F12 or right-click your app in the Project View) and check the dependencies tab to make sure the library is added as a file dependency and set to "Compile":




Afterwards open your AndroidManifest.xml and add our offerwall activity to your application scope:

<activity
    android:name="com.ayetstudios.publishersdk.OfferwallActivity"
    android:configChanges="orientation|screenSize">
    <intent-filter android:label="offer">
        <action android:name="android.intent.action.VIEW" />
        <category android:name="android.intent.category.DEFAULT" />
        <category android:name="android.intent.category.BROWSABLE" />
        <data android:scheme="offer" android:host="com.example.myapplication" /> <!-- Replace with your lower case package name -->
    </intent-filter>
</activity>
<activity android:name="com.ayetstudios.publishersdk.VideoActivity" android:configChanges="orientation|screenSize" />

Another AndroidManifest.xml requirement is your AYET_APP_KEY which you can fetch from our publisher dashboard in your placement or adslot details - add it to the application scope as well:

<meta-data android:name="AYET_APP_KEY" android:value="xxxxxxxxxxxxxxxx" />

Also make sure to check your permissions in the AndroidManifest.xml:

<uses-permission android:name="android.permission.INTERNET" />  <!-- mandatory permission -->
<uses-permission android:name="android.permission.READ_PHONE_STATE" />  <!-- optional -->
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" /> <!-- optional -->

This is an example for a complete AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.myapplication"> <!-- Replace with your lower case package name -->

    <uses-permission android:name="android.permission.INTERNET" />  <!-- mandatory permission -->

    <uses-permission android:name="android.permission.READ_PHONE_STATE" />  <!-- optional -->
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" /> <!-- optional -->

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity
            android:name=".MainActivity"
            android:label="@string/app_name">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

	<!-- Publisher SDK Specific-->
        <activity
            android:name="com.ayetstudios.publishersdk.OfferwallActivity"
            android:configChanges="orientation|screenSize">
            <intent-filter android:label="offer">
                <action android:name="android.intent.action.VIEW" />
                <category android:name="android.intent.category.DEFAULT" />
                <category android:name="android.intent.category.BROWSABLE" />
                <data android:scheme="offer" android:host="com.example.myapplication" /> <!-- Replace with your lower case package name -->
            </intent-filter>
        </activity>
        <activity android:name="com.ayetstudios.publishersdk.VideoActivity" android:configChanges="orientation|screenSize"></activity>

        <meta-data android:name="AYET_APP_KEY" android:value="xxxxxxxxxxxxxxxx" />
        <!-- End of: Publisher SDK Specific-->


    </application>

</manifest>

In this step, we are going to initialize the SDK in the main activity. We also use callbacks to track the user's account balance - this is optional and not required if you're planning to manage user balances on your own servers.
Attention: The username or external identifier passed in the init call (e.g. username, hashed email address, etc.) will be accessible in the conversion callbacks through the {external_identifier} parameter.

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    AyetSdk.init(getApplication(), "username (external identifier)", new UserBalanceCallback() { // UserBalanceCallback is optional if you want to manage balances on your servers
            @Override
            public void userBalanceChanged(SdkUserBalance sdkUserBalance) {
                Log.d("AyetSdk" , "userBalanceChanged - available balance: "+sdkUserBalance.getAvailableBalance()); // this is the new total available balance for the user
            }

            @Override
            public void userBalanceInitialized(SdkUserBalance sdkUserBalance) {
                Log.d("AyetSdk" , "SDK initialization successful");
                Log.d("AyetSdk" , "userBalanceInitialized - available balance: "+sdkUserBalance.getAvailableBalance()); // this is the total available balance for the user
                Log.d("AyetSdk" , "userBalanceInitialized - spent balance: "+sdkUserBalance.getSpentBalance()); // this is the total amount spent with "AyetSdk.deductUserBalance(..)"
                Log.d("AyetSdk" , "userBalanceInitialized - pending balance: "+sdkUserBalance.getPendingBalance()); // this is the amount currently pending for conversion (e.g. user still has offer requirements to meet)
            }

            @Override
            public void initializationFailed() {
                Log.d("AyetSdk", "initializationFailed - please check APP API KEY & internet connectivity");
            }
        });

    setContentView(R.layout.activity_main);
}

If you want to make sure the SDK has been initialized and is ready to display the offerwall or video ads, you can use the following function:

if (AyetSdk.isInitialized()) {
    Log.d("AyetSdk" , "SDK is ready");
} else {
    Log.d("AyetSdk" , "SDK is NOT ready");
}

If you want to spend user currency, for example if the user clicks a "purchaseInAppItem" button, you can utilize the deductUserBalance function:

mPurchaseInAppItemButton.setOnClickListener(new OnClickListener() {
    @Override
    public void onClick(View view) {
        int amount=100;
        AyetSdk.deductUserBalance(getApplication(), amount, new DeductUserBalanceCallback() {
            @Override
            public void success() {
                Log.d("AyetSdk" , "deductUserBalance - successful, new available balance: "+AyetSdk.getAvailableBalance());
                // TODO: activate the purchased content
            }

            @Override
            public void failed() {
                Log.d("AyetSdk" , "deductUserBalance - failed");
                // this usually means that the user does not have sufficient balance in his account
            }
        });
    }
});

Showing the offerwall for an offerwall adslot is straight-forward, you can simply call showOfferwall from any Activity:

AyetSdk.showOfferwall(getApplication(), "offerwall adslot name");

showOfferwall starts the offerwall activity for the adslot you pass as second parameter and displays available tasks for the user to complete.

If you want to display the offers manually in a custom form (e.g. "native offers"), you can call getNativeOffers for a Native Offer Feed adslot you created in your placement:

AyetSdk.getNativeOffers(getApplication(), "native adslot name", new NativeOffersCallback() {
                    @Override
                    public void onResult(boolean success, NativeOfferList responseMessage) {
                        if (success) {
                            Log.e("JSON Native Offers",  new Gson().toJson( responseMessage.offers ) );
                            MyApplication.this.nativeOfferCache=responseMessage.offers;
                        }
                    }
                });

getNativeOffers fetches all offers fitting this user / device in the background and calls NativeOffersCallback on completion. This usually takes between 0.5s and 4s depending on your adslot configuration and traffic sources.


After retrieving a list of native offers, you can store them and later activate one of the offers like this:

AyetSdk.activateOffer(MainActivity.this, MyApplication.nativeOfferCache.get(0).getId(), new ActivateOfferCallback() {
                        @Override
                        public void onFailed() {
                            // This is triggered if the offer is not available anymore or if connectivity problems are present
                        }

                        @Override
                        public void onSuccess() {
                            // This is triggered right before starting a Google Play intent or trying to open the default browser
                        }
                    });

activateOffer takes an offer id found in the native offer feed, checks the requirements and tries to reserve it for the user.


Class members for each AyetOffer entry are:

String id; // the id of the offer, used in activateOffer call
String name; // display name of the offer
String icon; // url to the offer icon
int category; // NativeOfferList.CATEGORY_INCENT | NativeOfferList.CATEGORY_NONINCENT
int type; // NativeOfferList.TYPE_CPI | NativeOfferList.TYPE_CPA | NativeOfferList.TYPE_CPL
String description; // a short description of the offer
String instructions; // conversion instructions for the user
int conversionTime; // average / estimated conversion time in seconds
int payout; // the payout in the configured virtual currency
ArrayList<AyetCreative> creatives; // optional: additional creative data (images, videos) for the offer

Before starting to implement video ads, please make sure that this ad format has been enabled for your placement.
If not, go to Placement > Settings > Video Ads and request access or contact your account manager to have them enabled.


To show a non-interruptable, fullscreen video ad (15-30 seconds depending on your placement video settings), you can make the following showVideoAd call:

AyetSdk.showVideoAd(getApplication(), "video adslot name", AyetSdk.FLAG_DEFAULT, new VideoCallbackHandler() {
        @Override
        public void nofill() {
            // This is called when either no video is available to watch, the AyetSdk has not been initialized or there were network/connectivity issues
            Log.d(TAG , "AyetSdk.showVideoAd::nofill()");
        }
        @Override
        public void finished() {
            // This is called when the video activity is done (video completed, aborted or other problems like network speed)
            Log.d(TAG , "AyetSdk.showVideoAd::finished()");
        }
        @Override
        public void willBeShown() {
            // This is called after selecting a video and right before the video activity is started to play it
            Log.d(TAG , "AyetSdk.showVideoAd::willBeShown()");
        }
    });

If you want to restrict video ads to wifi connectivity only, you can append the AyetSdk.FLAG_WIFI_ONLY flag:

AyetSdk.showVideoAd(getApplication(), "video adslot name", AyetSdk.FLAG_DEFAULT | AyetSdk.FLAG_WIFI_ONLY, new VideoCallbackHandler() {...

By default, videos will be shown in their optimized orientation (which is landscape in most cases). If your app should strictly stay in a fixed orientation, you can utilize the AyetSdk.FLAG_ORIENTATION_PORTRAIT or AyetSdk.FLAG_ORIENTATION_LANDSCAPE flags to enforce the video orientation:

AyetSdk.showVideoAd(getApplication(), "video adslot name", AyetSdk.FLAG_DEFAULT | AyetSdk.FLAG_ORIENTATION_PORTRAIT, new VideoCallbackHandler() {...

Another capability of the SDK is to asychronously request a video ad. This gives you the opportunity to decide whether the video should actually play or if it should be discarded.
Hint: The average request-to-play time is around 1.5-3 seconds for video ads under good network conditions.
To request a video ad asynchonously, you can use the following code (note the different callback interface):

AyetSdk.showVideoAd(MainActivity.this, "video adslot name", AyetSdk.FLAG_DEFAULT | AyetSdk.FLAG_ASYNC, new VideoAsyncCallbackHandler() {
        @Override
        public void nofill() {
            // This is called when either no video is available to watch, the AyetSdk has not been initialized or there were network/connectivity issues
            Log.d(TAG , "AyetSdk.showVideoAdAsync::nofill()");
        }
        @Override
        public void finished() {
            // This is called when the video activity is done (video completed, aborted or other problems like network speed)
            Log.d(TAG , "AyetSdk.showVideoAdAsync::finished()");
        }
        @Override
        public void willBeShown() {
            // This is called after selecting a video, after "videoAd.showVideo()" has been called in "ready(...)" and right before the video activity is started to play it
            Log.d(TAG , "AyetSdk.showVideoAdAsync::willBeShown()");
        }
        @Override
        public void ready(final VideoAdInterstitial videoAd) {
            // This is called when a video has been selected and is ready to be shown. You have about 60 seconds to decide whether you want to play the video by calling "videoAd.showVideo();"
            // If showVideo isn't called, the video will be discarded and the video activity won't start.

            Log.d(TAG , "AyetSdk.showVideoAdAsync::ready()");

			// As an example, we're starting a timer task here who is signaling the SDK to show the prefetched video after a delay of 4 seconds
            new Timer().schedule(new TimerTask() {
                @Override
                public void run() {
                    videoAd.showVideo();
                }
            } , 4000);
        }
    });


If you want to manually manage your users currencies on your own servers, you can configure a conversion callback url in our publisher dashboard.
To do so, navigate to Placements / Apps, edit your app placement and set the Callback Url to your server's postback url:


If this is the callback url your set for your app placement:

https://your-server.com/callback?network=ayetstudios&amount={currency_amount}&uid={external_identifier}&device={advertising_id}&payout_usd={payout_usd}

A typical conversion callback sent by our server will look like this:

https://your-server.com/callback?network=ayetstudios&amount=360&uid=username&device=[GAID]&payout_usd=0.36

* Note: This assumes you set the user identifier to username in your AyetSdk.init(..) call, the currency conversion rate in your placement was 1000 per $1 and the user completed an offer with a $0.36 payout.

Important: Your server must always reply with an HTTP 200 status code to our postbacks. Otherwise we will resend the postback 12 times over a span of one hour before giving up.

Available Macros for Postback URLs:

{transaction_id}	string	Unique transaction id - use for duplicate checks. If chargeback it's prepend with r-
{payout_usd}	float	The actual conversion payout in USD. If chargeback value is negative.
{currency_amount}	float	The amount of currency the user earned (taken from your offerwall currency configuration). If chargeback value is negative.
{external_identifier}	string	The user identifier set in your app for this user when initializing the sdk
{user_id}	integer	Our internal id for this offerwall user
{placement_identifier}	string	The placement_identifier for which the conversion occured
{adslot_id}	int	The id of the adslot for which the conversion occured
{ip}	string	Converting device's IP address if known, 0.0.0.0 otherwise
{offer_id}	int	Offer ID of the converting offer
{offer_name}	string	Name / title of the converting offer
{device_uuid}	string	ayeT-Studios internal device identificator
{device_make}	string	Device manufacturer
{device_model}	string	Device model
{advertising_id}	string	Device advertising id (GAID/IDFA) if known, otherwise empty
{sha1_android_id}	string	Device sha1 hashed android id if known, otherwise empty
{sha1_imei}	string	Device sha1 hashed imei if known, otherwise empty
{is_chargeback}	int	Either 0 or 1. Indicator if the callback is a conversion (0) or a chargeback (1).
{chargeback_reason}	string	Reason why chargeback created. Only available if is_chargeback set to 1.
{chargeback_date}	string	Date of chargeback creation. Only available if is_chargeback set to 1.
{task_name}	string	Only available for cpe campaigns, shows individual task name for that conversion.
{currency_identifier}	string	Shows virtual currency name as set in adslot.
{currency_conversion_rate}	decimal	Shows currency conversion rate used to calculate user currency for the given conversion.

Postback Verification with HMAC Security Hash (optional):
Our server will always add a custom header, X-Ayetstudios-Security-Hash, containing a SHA256 HMAC hash of the request parameters and your publisher api key.
Your API key can be found in your dashboard at ayetstudios.com under settings.

To verify the hash, perform the following steps:
(1) Get all request parameters
(2) Order the request parameters alphabetically
(3) Build and compare the HMAC hash using the ordered request parameter string and your API key

PHP Example:

ksort($_REQUEST, SORT_STRING);
$sortedQueryString = http_build_query($_REQUEST, '', '&'); // "adslot_id=123&currency_amount=100&payout_usd=1.5...."
$securityHash = hash_hmac('sha256', $sortedQueryString, 'YOUR PUBLISHER API KEY');
if($_SERVER['HTTP_X_AYETSTUDIOS_SECURITY_HASH']===$securityHash) { // actually sent as X-Ayetstudios-Security-Hash but converted by apache2 in this example
    // success
}
else {
    // invalid signature
}

If your want to restrict postbacks to our callback server IPs, please whitelist the following IPs and check back regularly for possible changes:

35.165.166.40
35.166.159.131
52.40.3.140

Last IP List Update: 2017-04-07

If you're going to use Proguard in your release build to obfuscate your application, make sure to add the following rules to your proguard-rules.pro files:

-keep class com.ayetstudios.publishersdk.messages.** {*;}
-keep public class com.ayetstudios.publishersdk.AyetSdk
-keepclassmembers class com.ayetstudios.publishersdk.AyetSdk {
   public *;
}
-keep public interface com.ayetstudios.publishersdk.interfaces.UserBalanceCallback { *; }
-keep public interface com.ayetstudios.publishersdk.interfaces.DeductUserBalanceCallback { *; }

-keep class com.ayetstudios.publishersdk.models.VastTagReqData { *; }


Important: It's always highly recommended to test your release builds before publishing them on Google Play to verify that they behave as intended!
